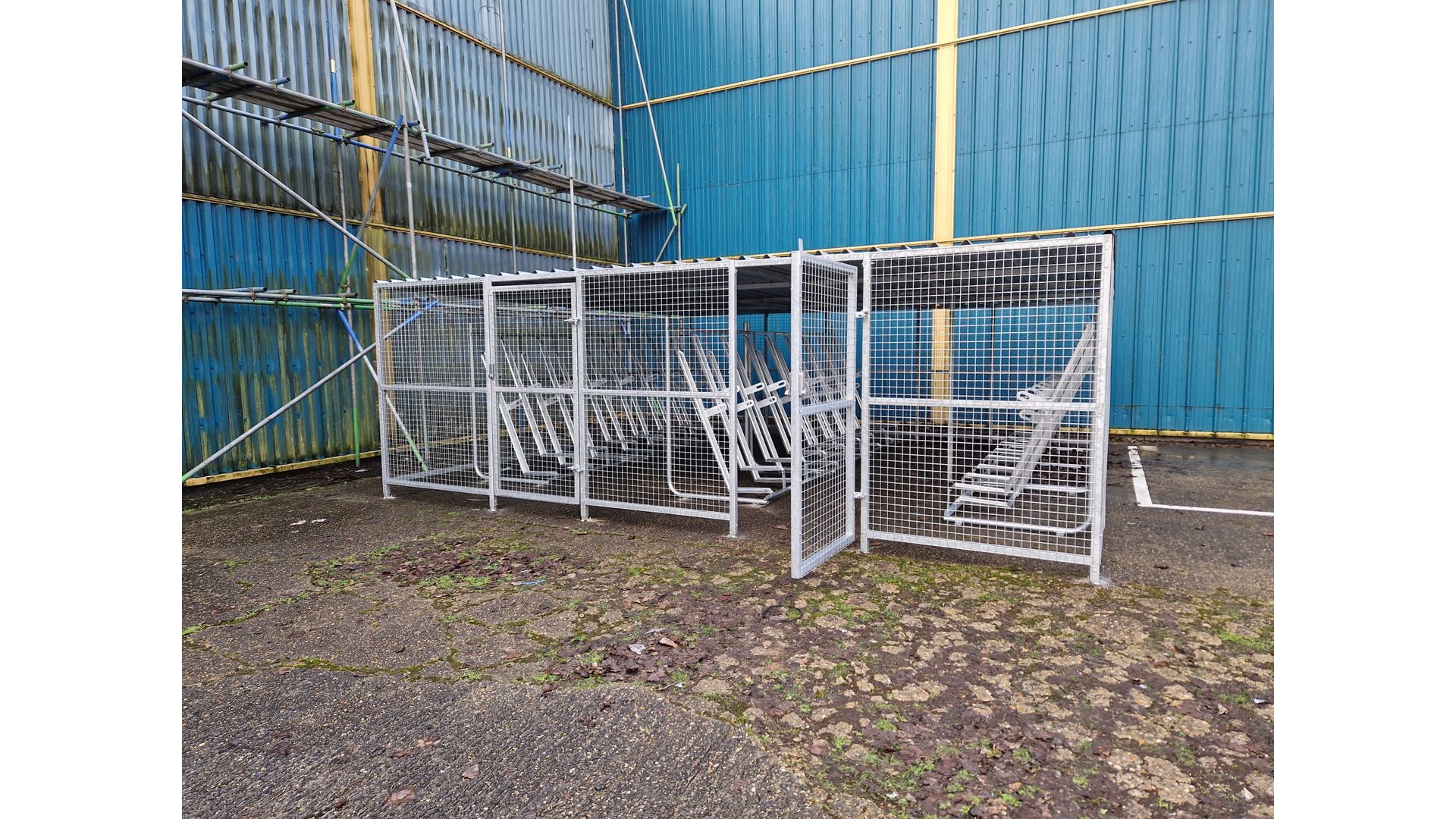

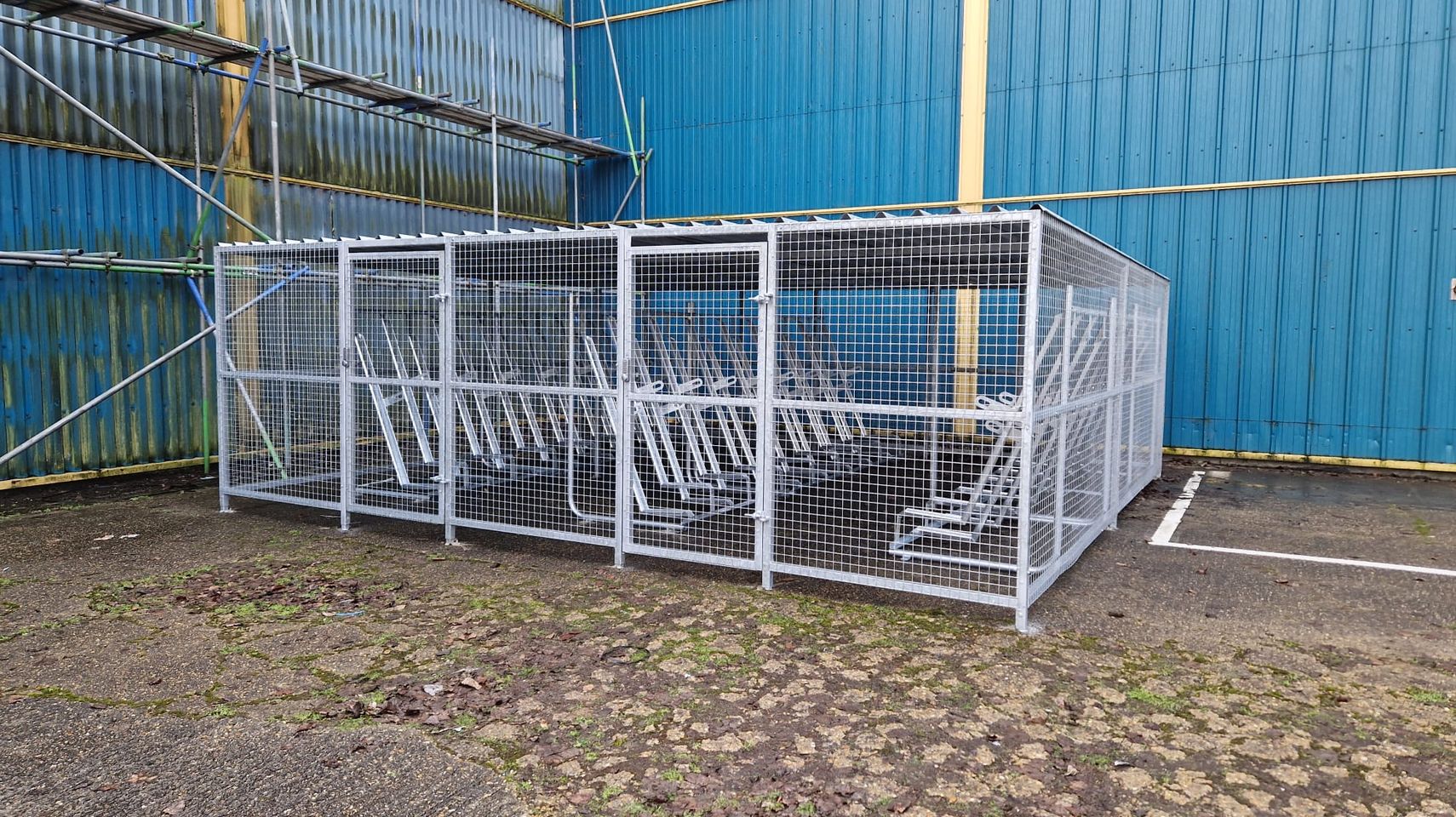

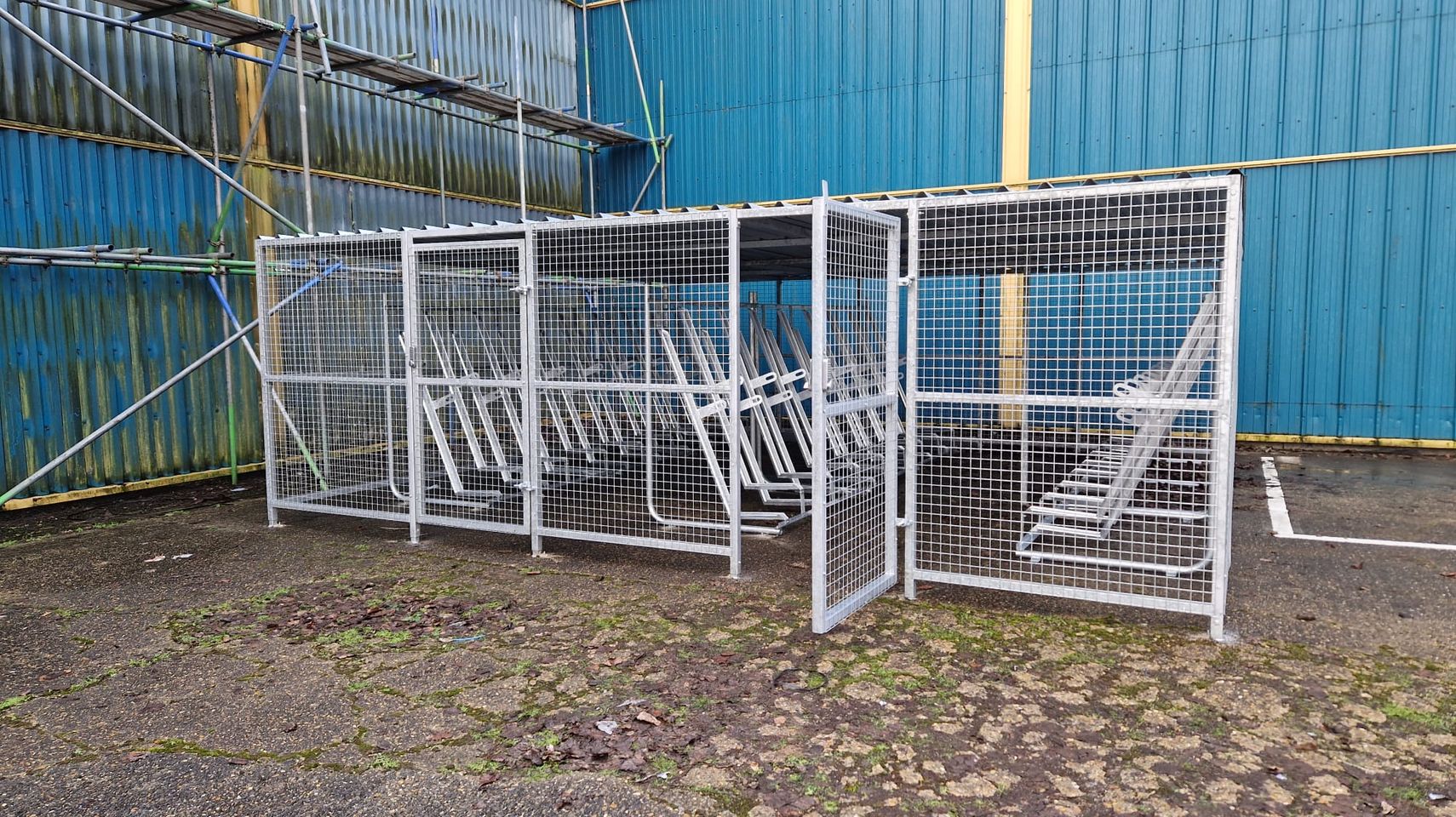

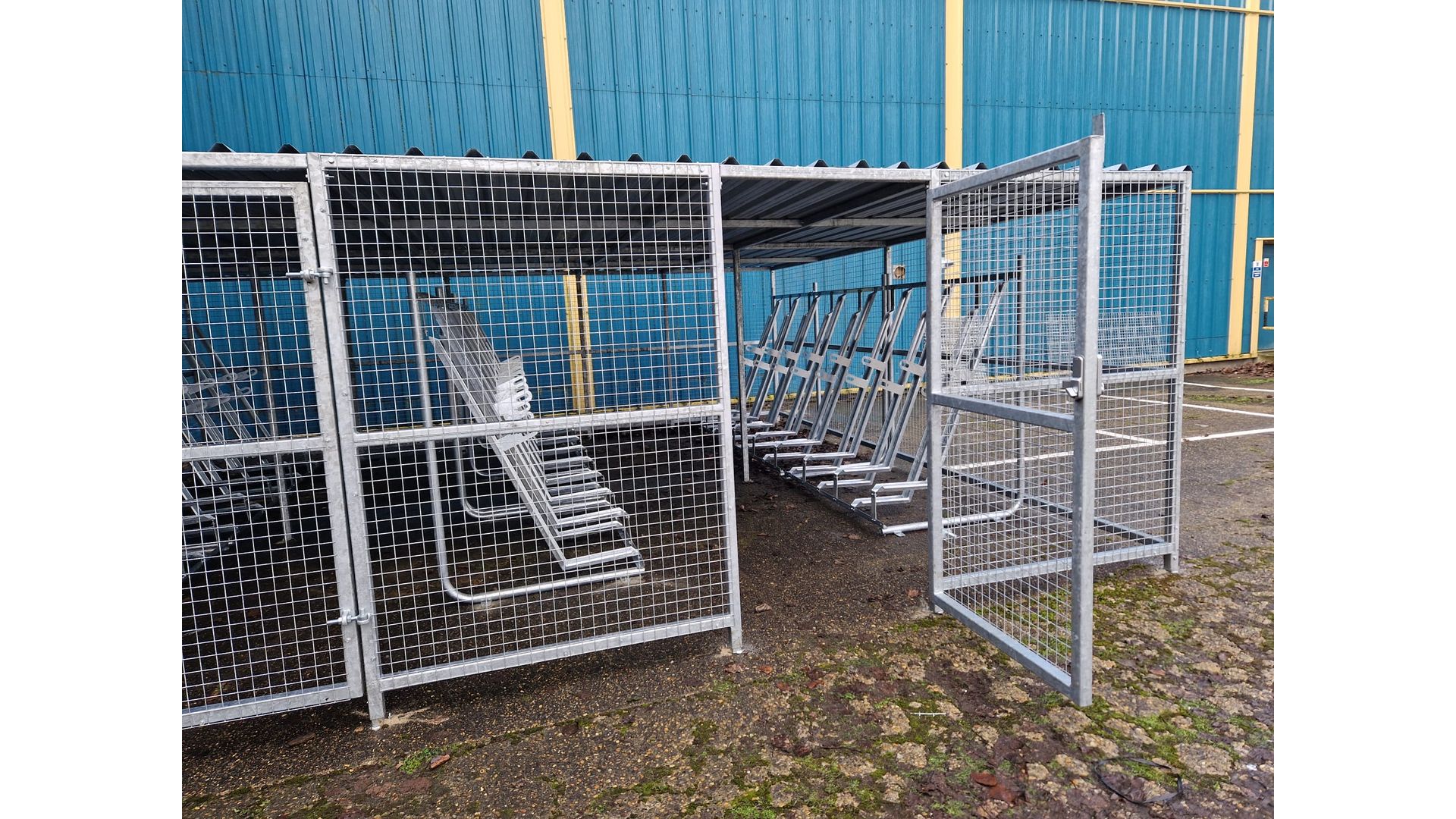

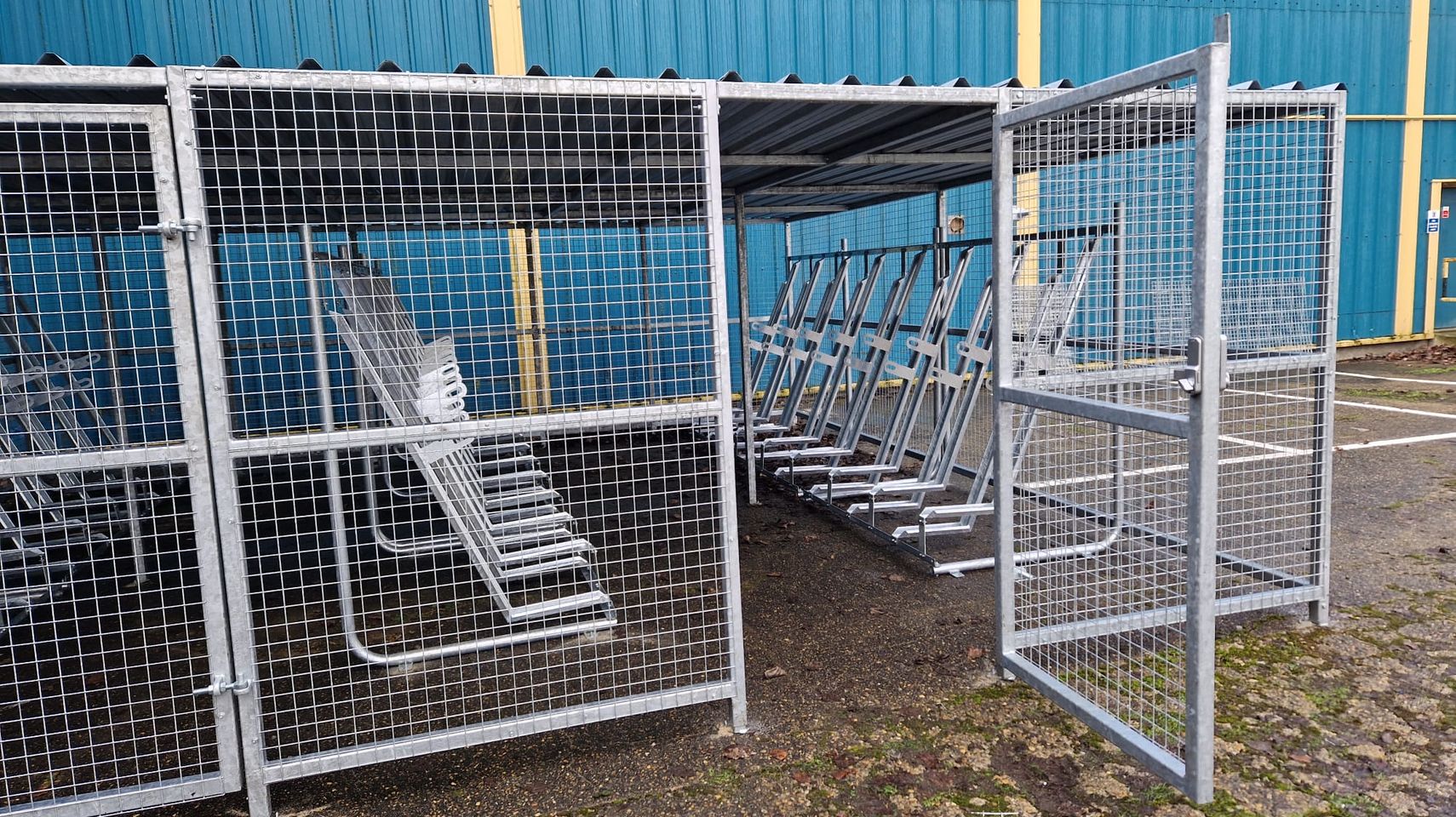

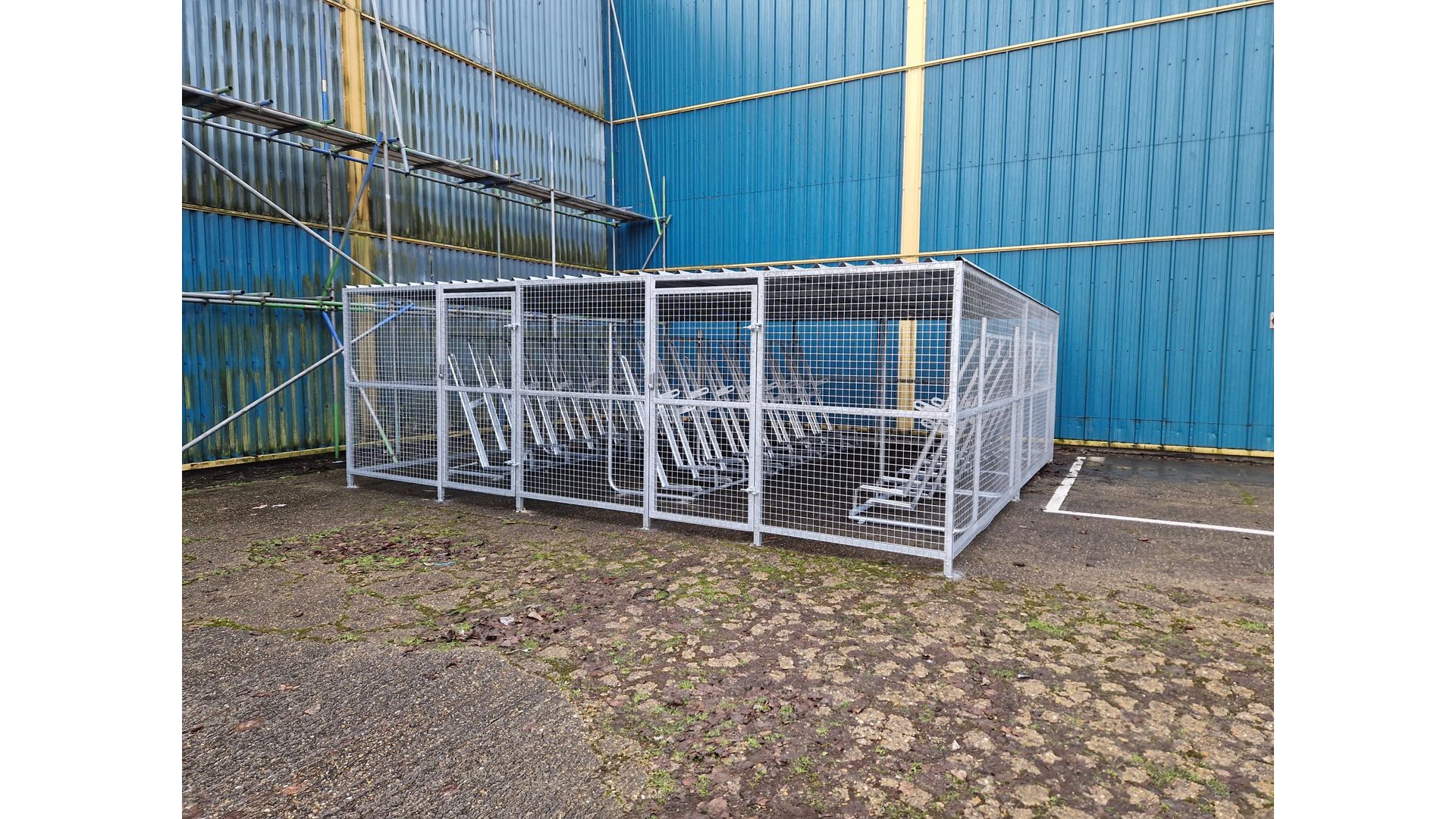

Marina Mesh Bike Shelter

Marina Mesh Bike Shelter description

The Marina Mesh Bike Shelter provides cost effective bike storage with a mesh cladding. The bike shelter comes with either a Sheffield toast rack or semi-vertical bike rack depending upon the number of bikes to be stored (see shelter dimensions below).

SHELTER SPECIFICATION

  • 50mm x 50mm x 3mm mild steel RHS frame
  • Hot dip galvanised to BS EN ISO 1461:1999
  • Overclad with mesh panels - for fully welded panels please see our Merton Mesh
  • SECURE - No crawl perimeter
  • SECURE- Standard hasp & staple, other options available (see below)
  • Complies with Code for Sustainable Homes & BREEAM
  • Surface mounted with adjustable height
  • Can be surface or root fixed
  • Can be powder coated to RAL on request

LOCK OPTIONS

  • Coded Padlock
  • Keyed alike Padlock
  • Combination keypad

SHELTER DIMENSIONS

Number of bike spaces 10 12 20 24 30 36
Rack type Sheffield stand Semi-vert Sheffield stand Semi-vert Sheffield stand Semi-vert
Depth (mm) 2,100 2,100 2,100 2,100 2,100 2,100
Width (mm) 4,100 4,100 8,200 8,200 12,300 12,300

All shelters approximately 2150mm high



SHEFFIELD TOAST RACK SPECIFICATION

View the Sheffield toast rack page here

  • Sheffield toast rack provides a cost effective stand which can also be used to lock a bike to
  • SECURE - 3mm thick mild steel (to comply with Code for sustainable homes and Secured by design requirements)
  • Hot dip galvanised to BS EN ISO 1461:1999
  • 750mm deep, 800mm high
  • Surface mounted
  • Can be powder coated upon request

SEMI-VERTICAL BIKE RACK SPECIFICATION

View the semi-vertical bike rack page

  • Space saving bike rack as bikes are stored semi-vertically and at staggered heights
  • Hot dip galvanised to BS EN ISO 1461:1999
  • 3 fixing points to lock the bike to
  • Surface mounted
PHOTO-2023-01-26-09-36-44.jpgPHOTO-2023-01-26-09-37-18 2.jpgPHOTO-2023-01-26-09-36-43.jpgPHOTO-2023-01-26-09-36-44.jpg

Delivery Information

Available in 14+ days

Due to the nature of this product, we are unable to provide a delivery cost online. Please contact us for our delivery rates for this product.
