At Riverside Court in Oxford, we were commissioned to design, manufacture, and install a cycle storage and waste management solution that balanced durability, security, and visual consistency. The project, required a robust yet refined approach to accommodate both high-capacity Bespoke Cycle Parking and practical Bin Storage within a residential setting.

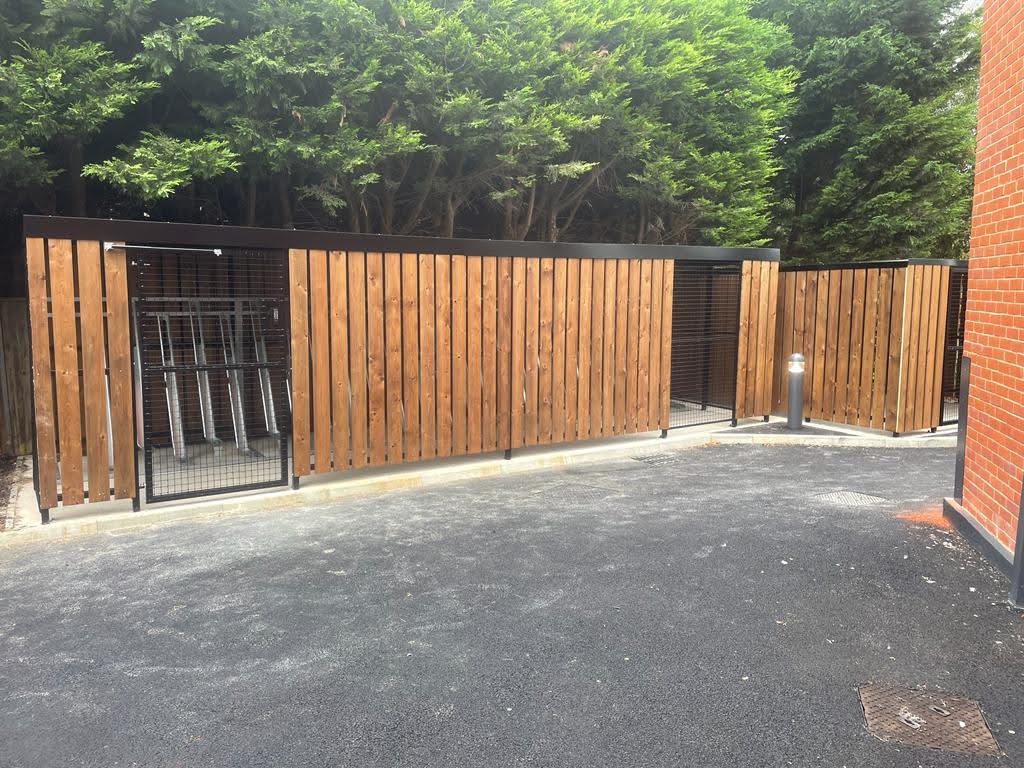

The brief called for a large-scale cycle shelter alongside two separate bin storage units, all unified through consistent materials, finishes, and thoughtful detailing. Measuring 8350mm in length, 2300mm in width, and 2150mm in height, the shelter provides secure, weather-protected storage for up to 26 bicycles. The structure features a steel framework with galvanised roof sheets and flashings, all powder coated in Black RAL 9005 for a clean, modern appearance and long-term resilience against the elements. The front and rear elevations are clad in pressure-treated brown PAR timber, offering a natural finish.

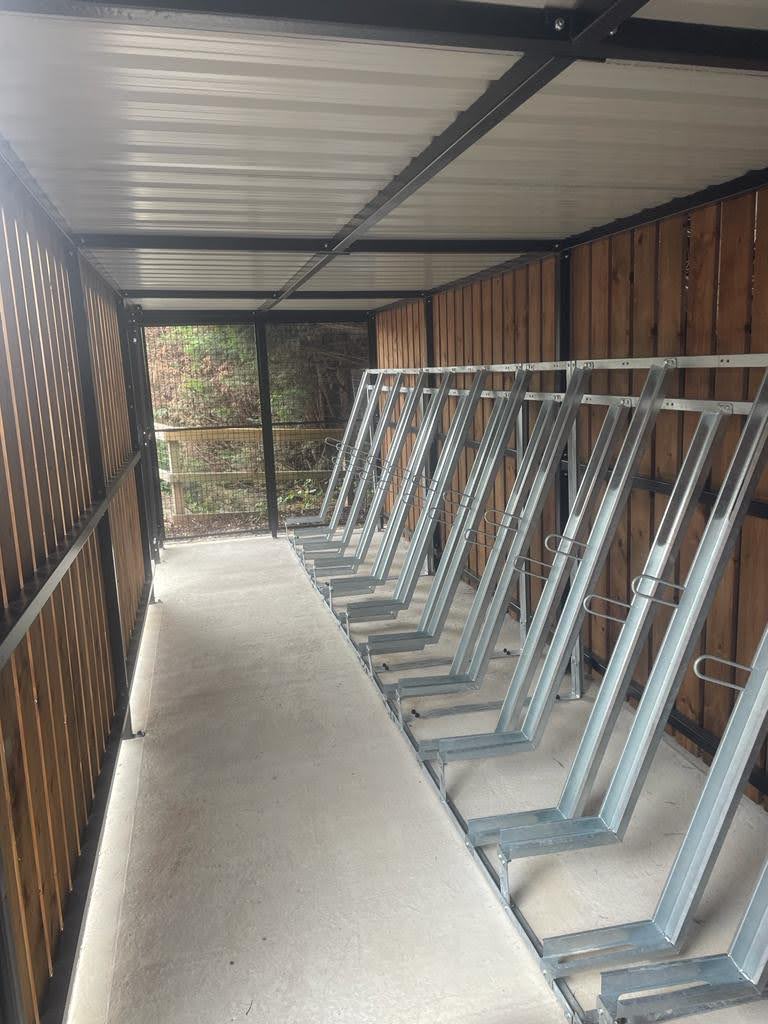

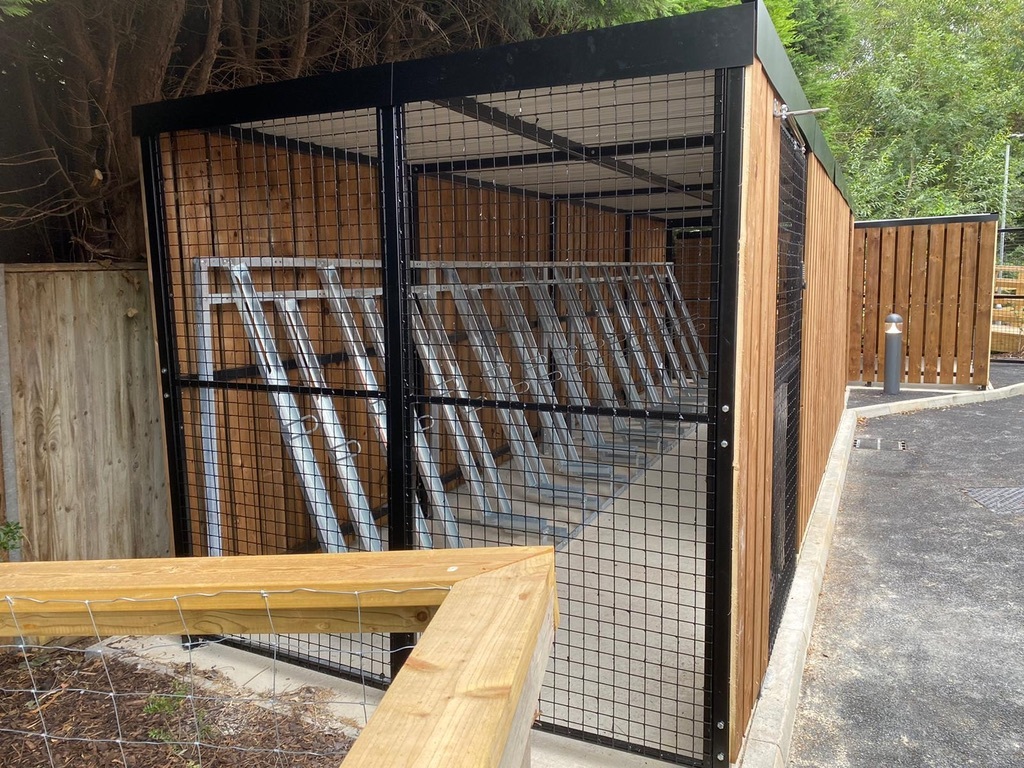

The shelter has galvanised mesh sides and a mesh gate system with a self-closing mechanism. A double-sided combination latch lock ensures ease of access for users while maintaining security and latch protectors add an extra layer of durability and tamper resistance. 26 Semi-Vertical Galvanised Cycle Racks were installed internally, each designed with a 3 point locking system to maximise security while optimising space efficiency.

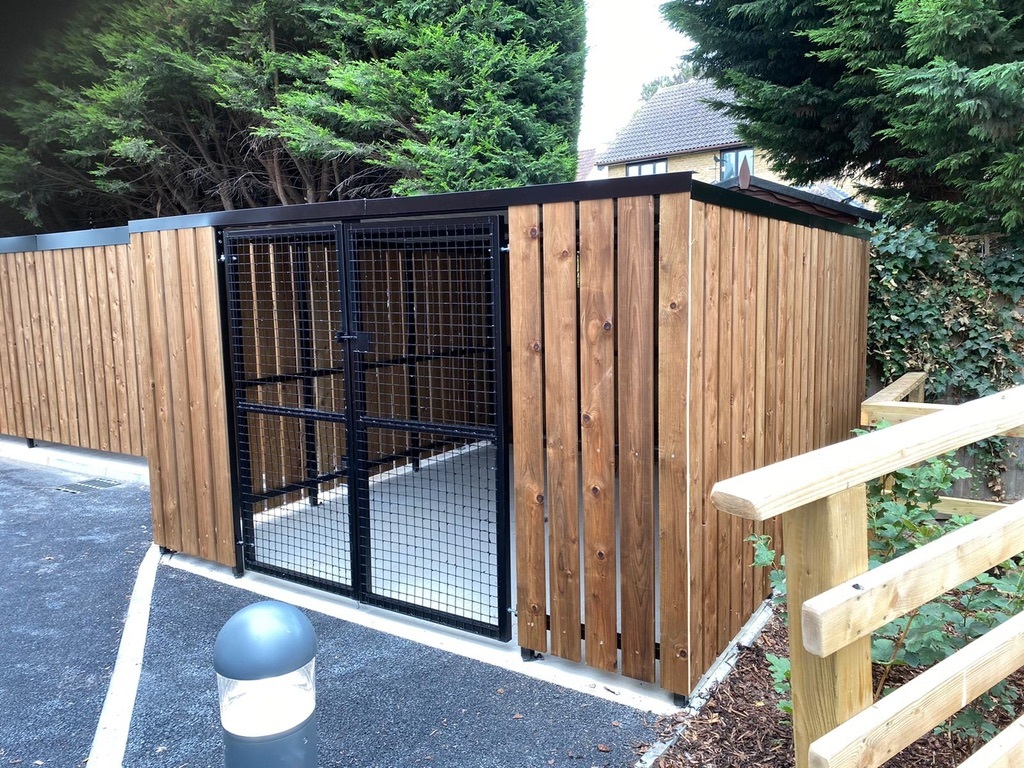

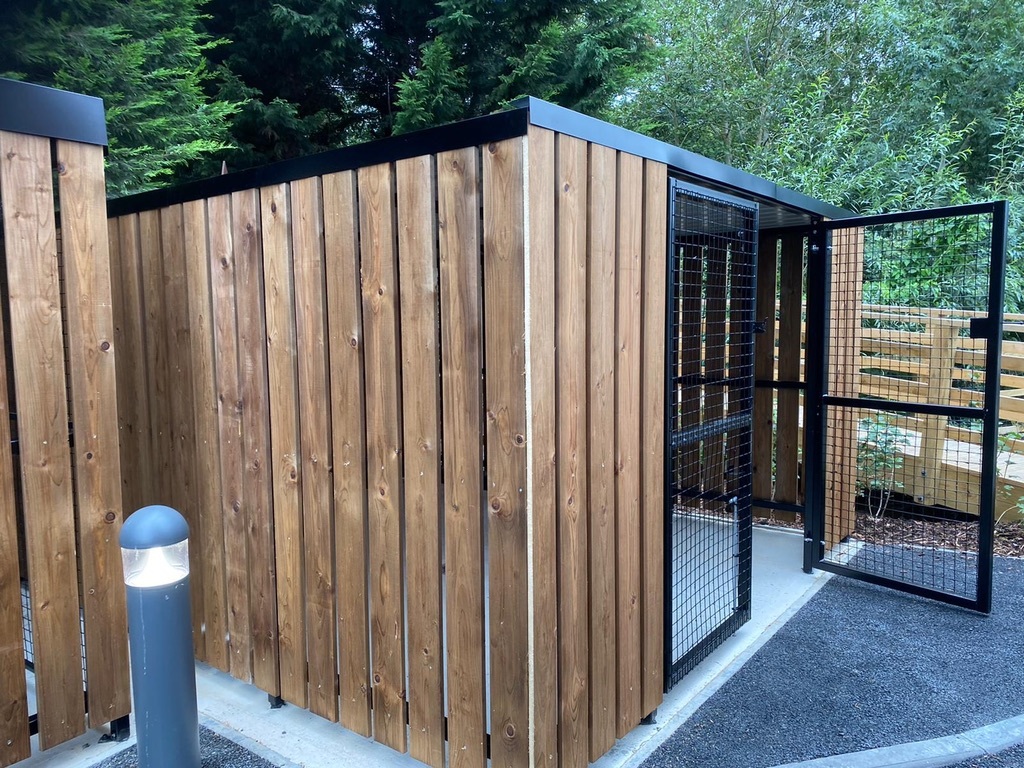

Complementing the cycle shelter are two bespoke bin storage units, each tailored to different spatial and functional requirements within the site. The first Bin Store measures 3600mm by 3810mm with a height of 2100mm. Constructed with surface-mounted galvanised posts connected by crossbars, it is fully clad in the same pressure-treated brown timber using a hit-and-miss arrangement. This unit includes a roof with galvanised sheets and flashings, all finished in Black RAL 9005 to match the cycle shelter. Access is provided via 2000mm mesh-clad doors fitted with a drop bolt mechanism and heavy-duty automatic gate latches, ensuring both practicality and secure containment of waste bins.

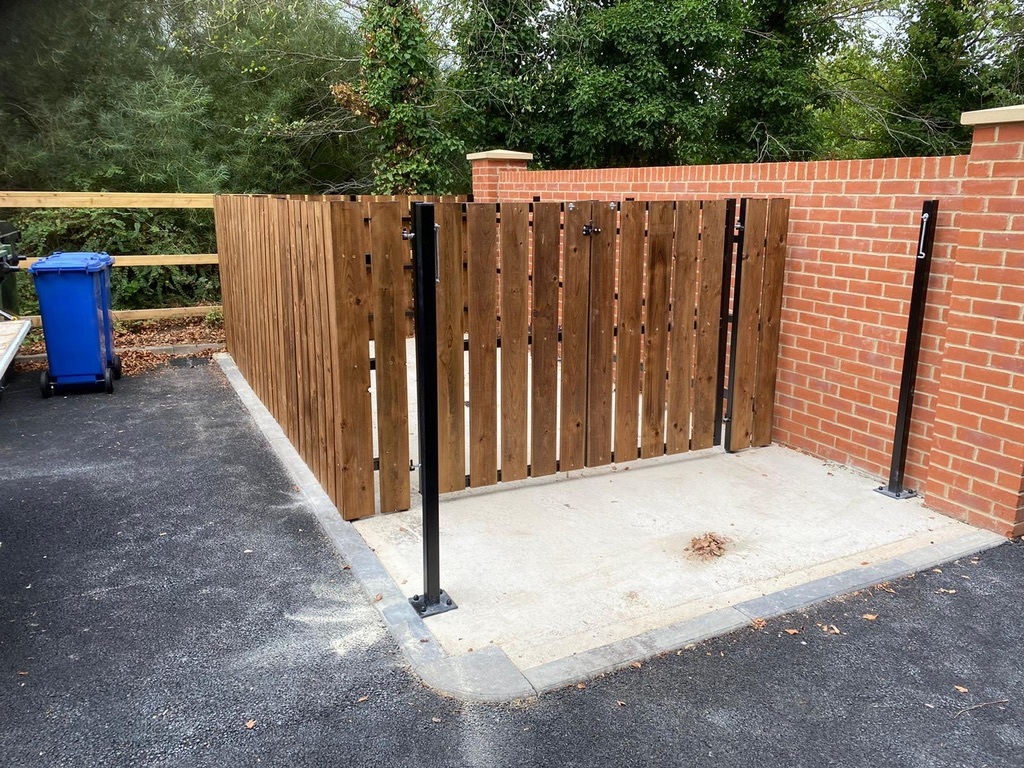

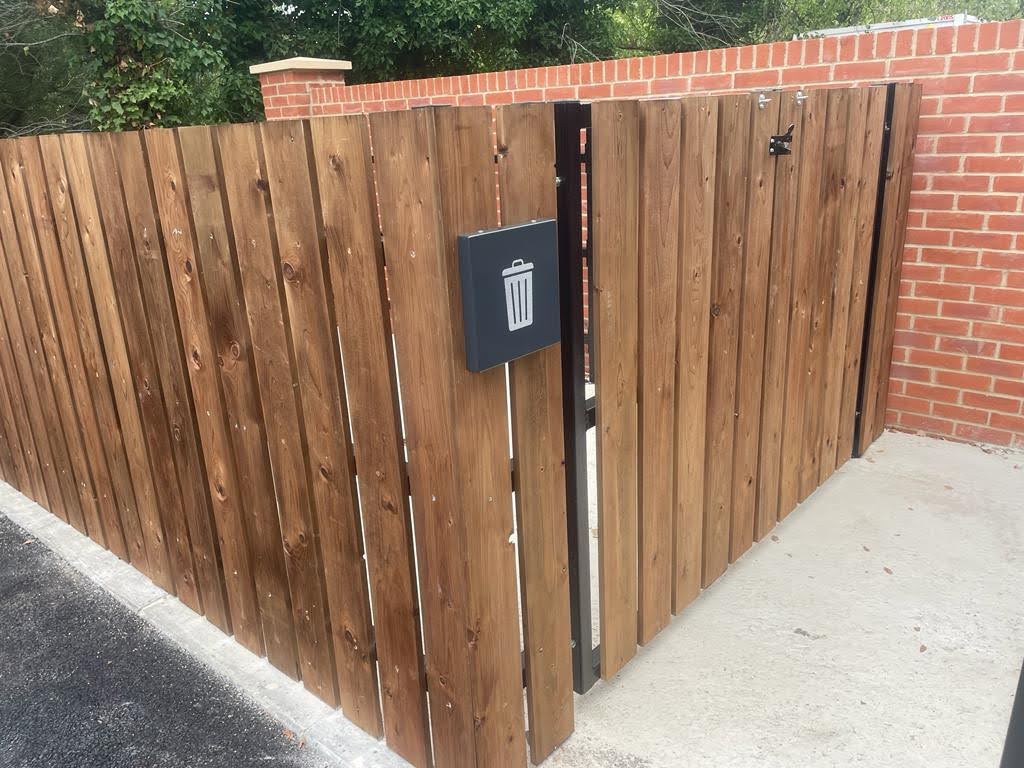

The second Bin Store was designed as a more open structure, measuring 4550mm by 2600mm with a height of 1500mm and incorporating 300mm infill panels. Built using over-ground fixed galvanised posts and crossbars, this unit is similarly clad in brown treated timber in a hit-and-miss style but intentionally designed without a roof to suit its specific location and use.

This project at Riverside Court demonstrates how practical infrastructure such as cycle and bin storage can be elevated through careful design, material selection, and attention to detail. The finished installation not only meets functional requirements but also enhances the overall appearance and usability of the space for residents.
