Traditional Sheffield Cycle Stand

Traditional Sheffield Cycle Stand description

Key Features

  • Traditional Sheffield Cycle Stand Underground fixing
  • Premium stand galvanised steel construction with 3mm thickness (2010 compliant)
  • Includes welded anchor T-Bar to be set in concrete
  • Underground fixing - required to be concreted into the ground
  • Enables both bike frame and wheel to be locked
  • Appropriate Secure Fixing
  • Dimensions: Height 1000mm x Width 750mm



Code for Sustainable Homes Credits

This Traditional Sheffield Cycle Stand can help contribute towards gaining your 2 ENE8 Cycle storage credits when used in an appropriate situation and solution, as the criteria states for secure cycle storage below:-

Secure storage is defined as the provision of the fully enclosed solid structure with a secure entrance lock and/or secure fixings, depending the situation and solution.

In individual dwellings:

  • for solid enclosed structures: entrance lock or secure fixing(s)
  • for non solid structures: entrance lock and secure fixing(s)
  • for non fully enclosed structures (just three walls and a roof) secure fixing(s) are required

Blocks of flats and multi dwellings, with communal areas:

  • communal halls and solid enclosed structures: secure entrance lock and secure fixing(s), to enable all cycle(s) to be locked
  • for non solid structures: entrance lock and secure fixing(s)
  • for non fully enclosed structures (just three walls and a roof) a secure fixing(s)

For Garden Shed Cycle Storage:-

A Shed should be set on a concrete foundation and secure fixing(s) needs to be provided.

The minimum storage area required to store Cycles on the floor, defined by the New Metric Handbook which includes space to allow the cycles to be moved independently.

  • 1 Cycle: 2m long x 0.75m wide
  • 2 Cycles: 2m long x 1.5m wide
  • 4 Cycles: 2m long x 2.5m wide

Note: When providing cycle storage in a shed a minimum of 1m² is required for garden tools (in addition to the above dimensions)

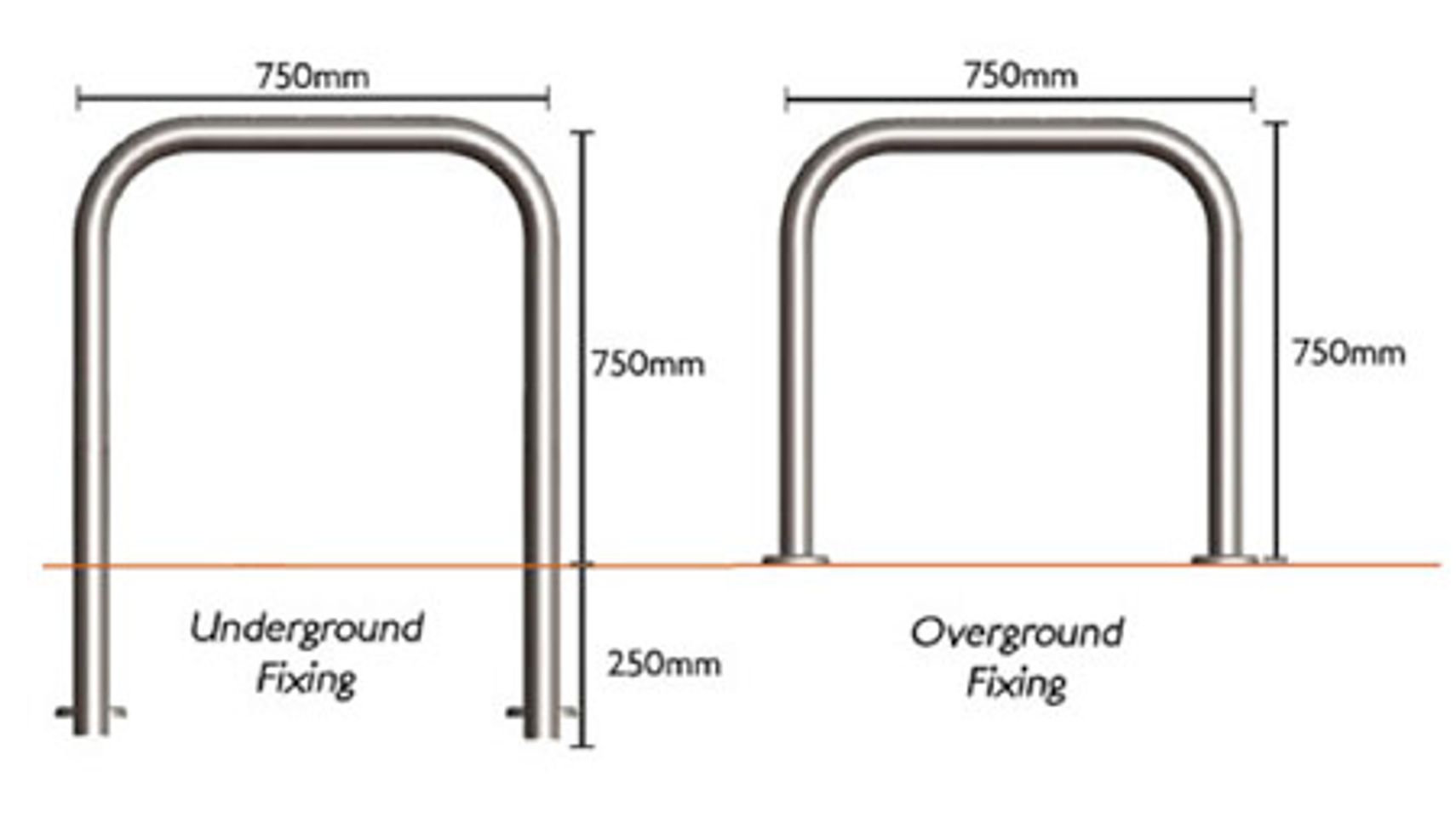

Dimensions (external)

Overground: Height: 750 x Width: 750 mm
Underground: Height: 1000 x Width: 750 mm (250mm to be underground as per image)



770x520_Sheffield stand with underground fixing.jpgsheffield_fixing.jpgTraditional Sheffield Stand Overground Fixing.jpgsheffield_stand_dimnsions.jpg

Delivery Information

Available in within 24 hours
